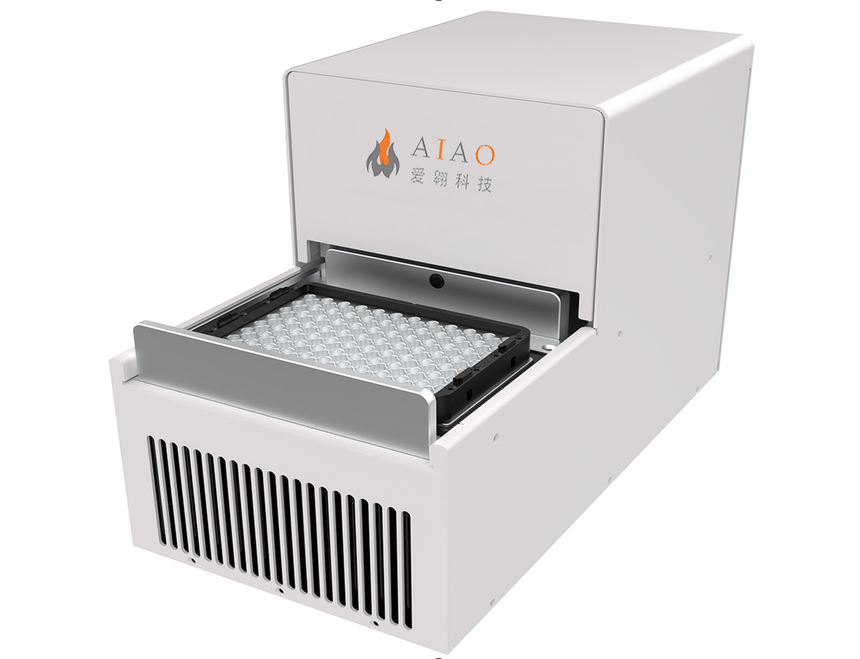

P96A Automated PCR System

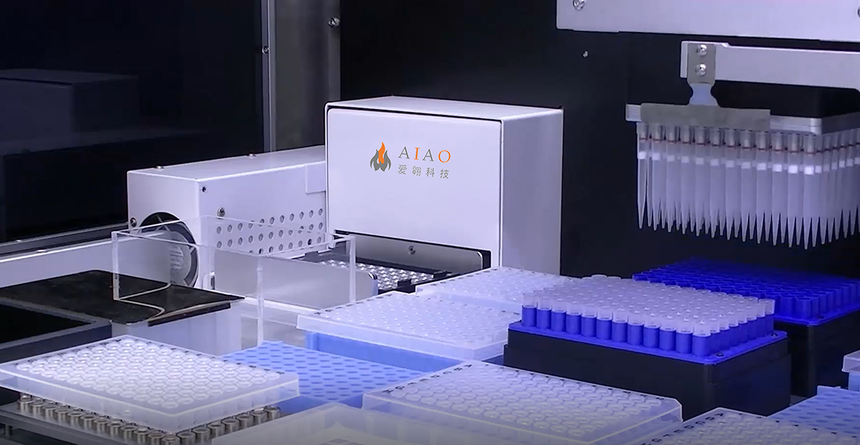

P96A automated PCR system can be connected to a computer through a USB port or RS232/RS485 port. All operations are completed on the PCR instrument under the control software. Fast temperature rise and fall , with a maximum temperature rise and fall rate of 5 ℃/s; Compact in size, it can be integrated with a liquid handling workstation.

Performance characteristics:

1)  Adopting imported customized long-life Peltier modules with a cycle count greater than 1 million times;

2)  The engineering reinforced aluminum module treated with anodizing technology not only retains fast thermal conductivity but also has sufficient corrosion resistance;

3)  Fast temperature rise and fall rate, with the fastest temperature rise and fall rate of 5 ℃/s

4)  Electric adaptive heat cover, capable of adapting to full skirt and half skirt 96 well PCR plates;

5)  Compact in size, can be paired with a desktop liquid transfer workstation;

6)  Connect the computer via USB or RS232/RS485 port

7)  It can run offline, and in the event of a computer crash or communication interruption, the machine's operation is not affected, and the experiment can proceed normally;

8)  Automatic power-off protection, automatically executing unfinished cycles after power restoration, ensuring safe operation of the entire amplification process;

9)  Support opening covers and adding samples during the experimental process to meet various experimental needs;

10)  Control software can be upgraded through a computer without the need for other tools.
