Automatic Reagent Filling, Sealing, and Labeling Production Line

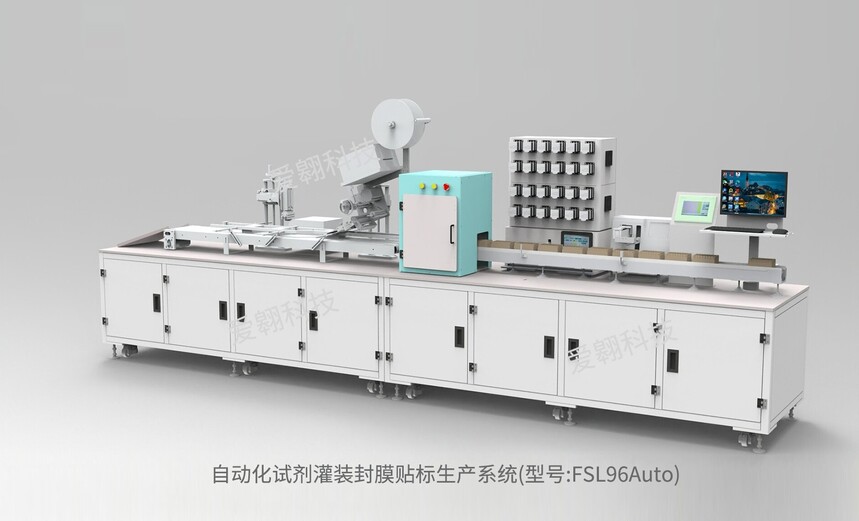

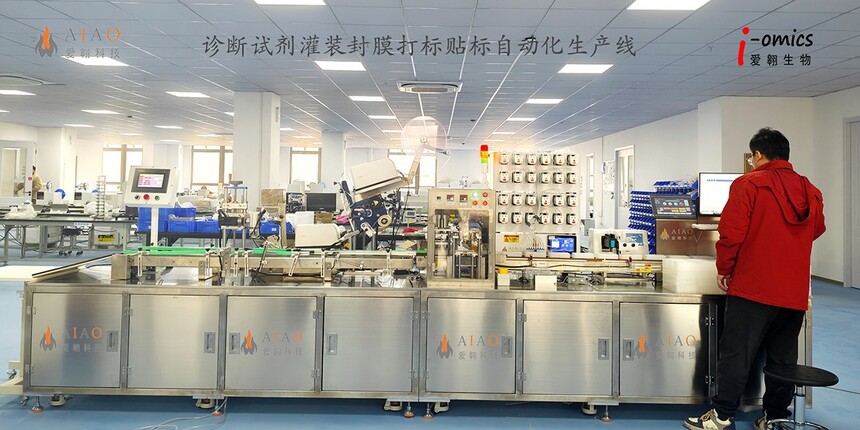

The automated reagent filling, sealing, and labeling production system (Model: FSL96Auto) streamlines the entire process from material feeding, filling, and sealing to labeling and unloading, significantly boosting production efficiency. Capable of handling diverse reagent kit products including microplates, PCR plates, and various test strips, this system stands out as one of the few multi-task diagnostic reagent production lines on the market, offering exceptional cost-effectiveness.

Instrument features：

1. Efficient feeding, filling, sealing, labeling, and labeling, and unloading

2.  Productivity: 300-450 units per hour

3.  Service life:>5 years

4. Liquid volume range: 2-5000μL

5. The precision of 100 μL liquid volume is CV<2.0% or CV<3.0%.

6. Suitable for microplates, PCR plates, and various test tubes.

7. Multiple small production lines can be connected to form a large production line.

8.  A robotic arm can be optionally equipped for loading and unloading.

9. It can be equipped with a pallet stack: capacity 80-120 units It can be equipped with a pallet stack.

10. 8 baskets; 10-15 boards per basket

11. Module Motion: Software Control of Automatic Rotation of the Basket

12. Manipulator motion: automatic picking of microplate from basket to the platform of the production line
