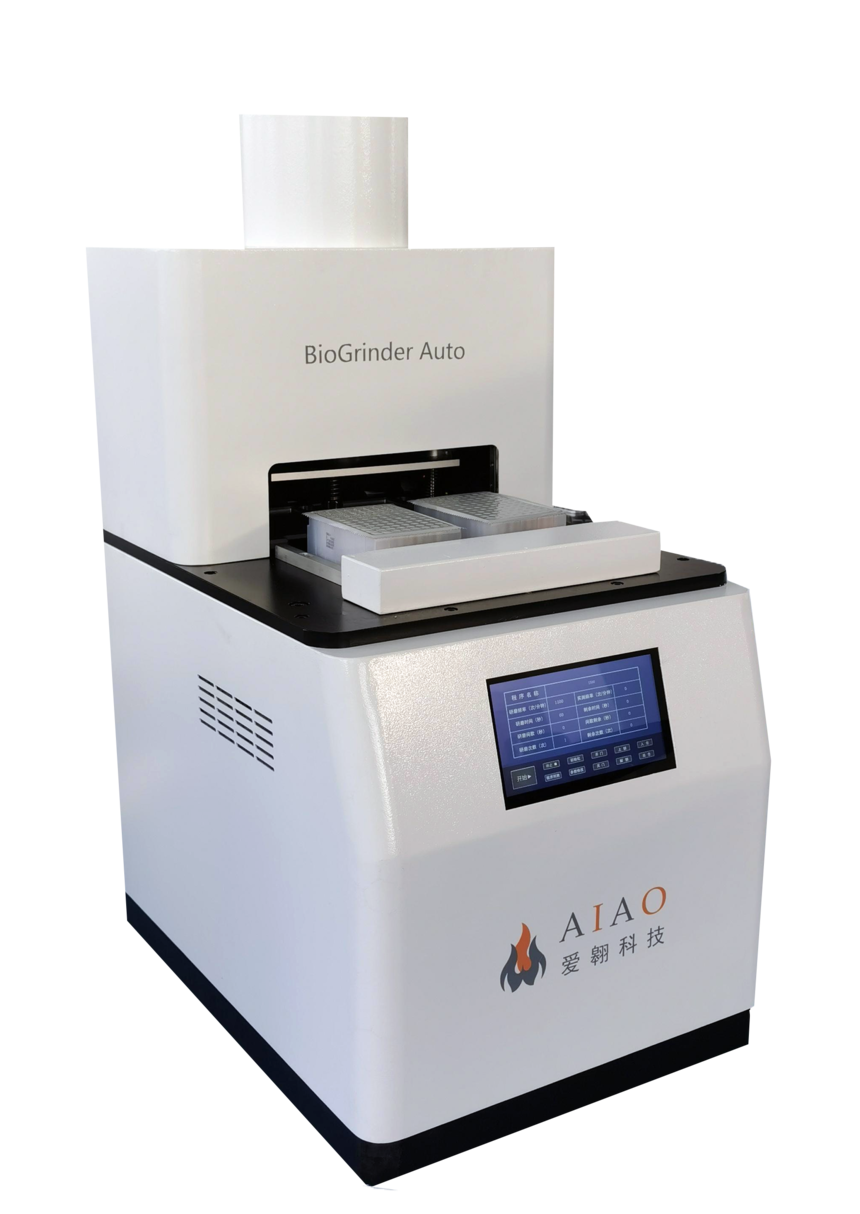

BioGrinder Auto

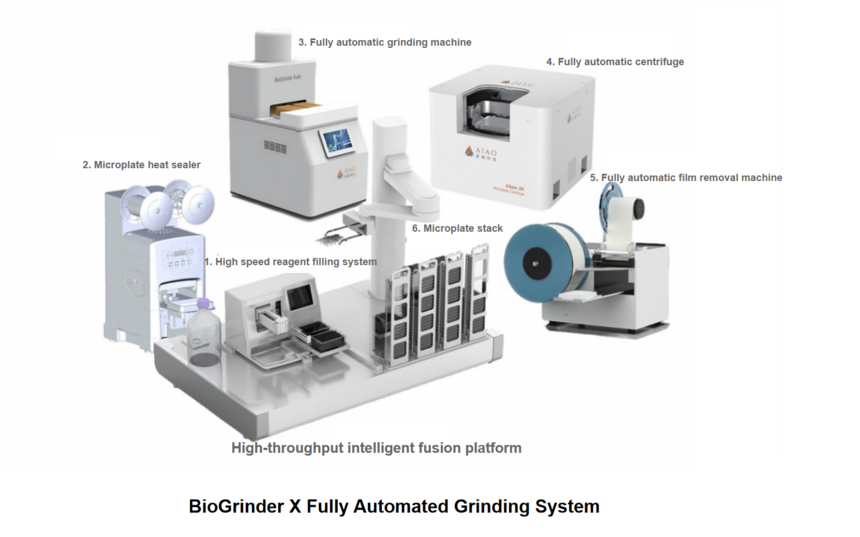

The "sharpening stone" series of automated grinders-BioGrinder, with its outstanding performance and innovative automation technology, will bring unprecedented changes to the biological sample analysis industry, enabling complex sample grinding to be achieved through unattended automation. Combined with I-omics Biotech's smart devices for sealing, peeling, pipetting, centrifuging, and filtration, it ultimately realizes the ultimate goal of "sample in, result out" for biological tissue specimens.

To meet the needs of users at different levels, I-omics Biotech has launched three product lines: Personal Version (BioGrinder), Automated Integration Version (BioGrinder Auto), and High-Throughput Grinding Workstation System (BioGrinder X), to satisfy the technical requirements of users with varying needs. We believe that' sharpening stone 'will bring revolutionary changes to the high-throughput automated biological sample analysis industry, and we look forward to exploring the endless possibilities of 'sharpening stone' together with our customers.

performance parameter:

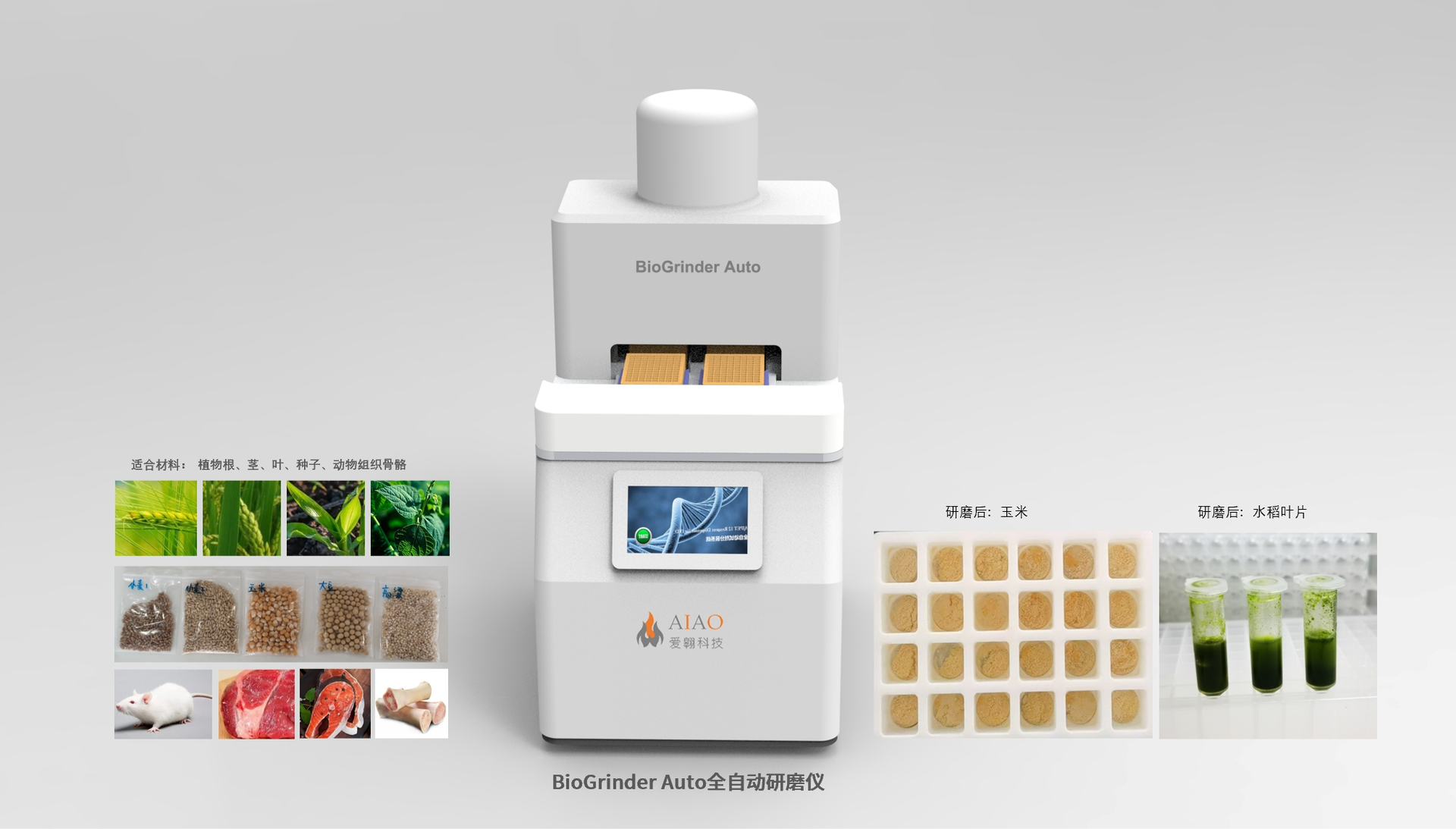

1. Application fields: animal and plant tissue cell homogenization, material dispersion preparation, sample mixing and oscillation;；

2. LCD: microcomputer control, large screen 7-inch LCD screen, display working status;；

3. Maximum sample size: 192；

4. Grinding principle: vertical reciprocating impact mode；

5. Grinding speed: 0-2000 times/min；

6. Adapter material: grinding dedicated deep hole plate or customized polymer material adapter；

7. Grinding method: wet grinding, dry grinding, low temperature grinding can be;

8. Grinding positions: 2；

9. With automatic locking device;

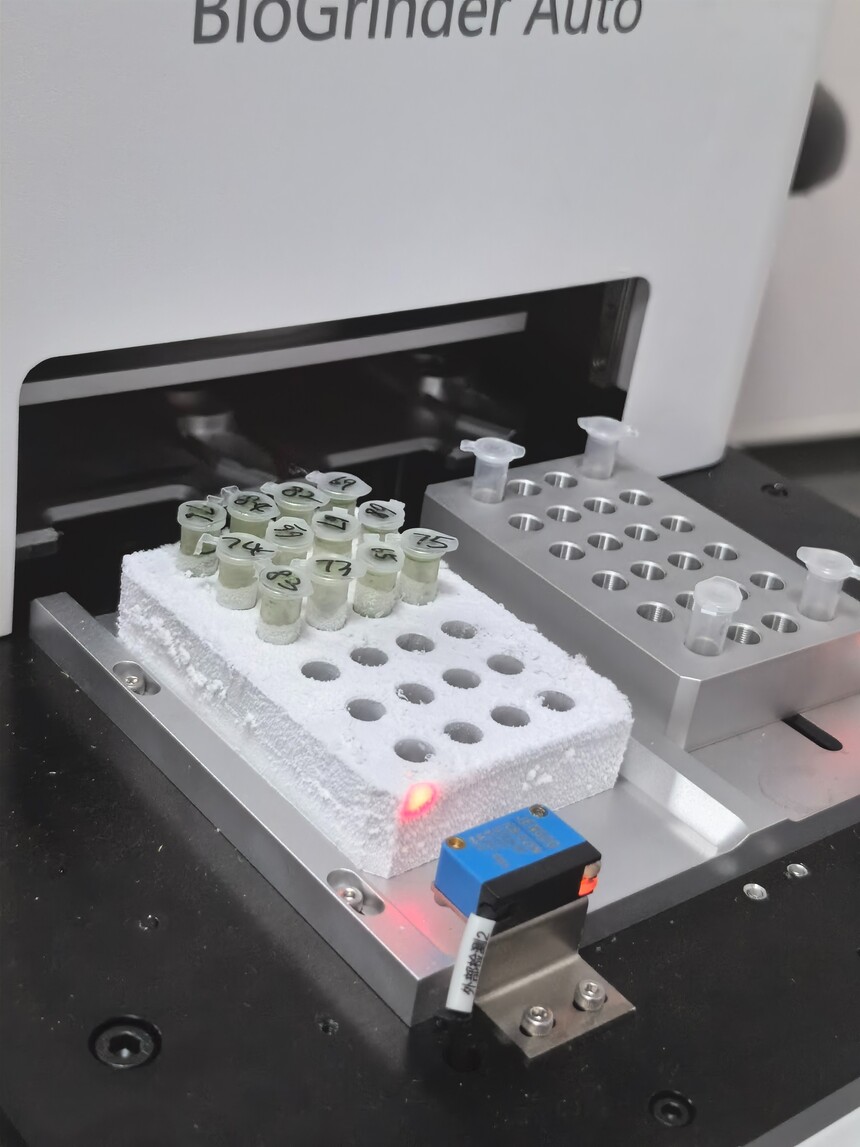

10. With automatic sampling device;

11. The sensor automatically senses the sample;

12. The system electric vertical lock door during work, full protection;

13. At the end, the system electrically opens the vertical door and samples are removed from the warehouse;

14. Working time: 0 seconds-99 minutes, users can set by themselves;

15. Grinding ball material: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand;

16. The integrated grinding instrument can provide the software drive command for system docking, which can be connected through RS232
