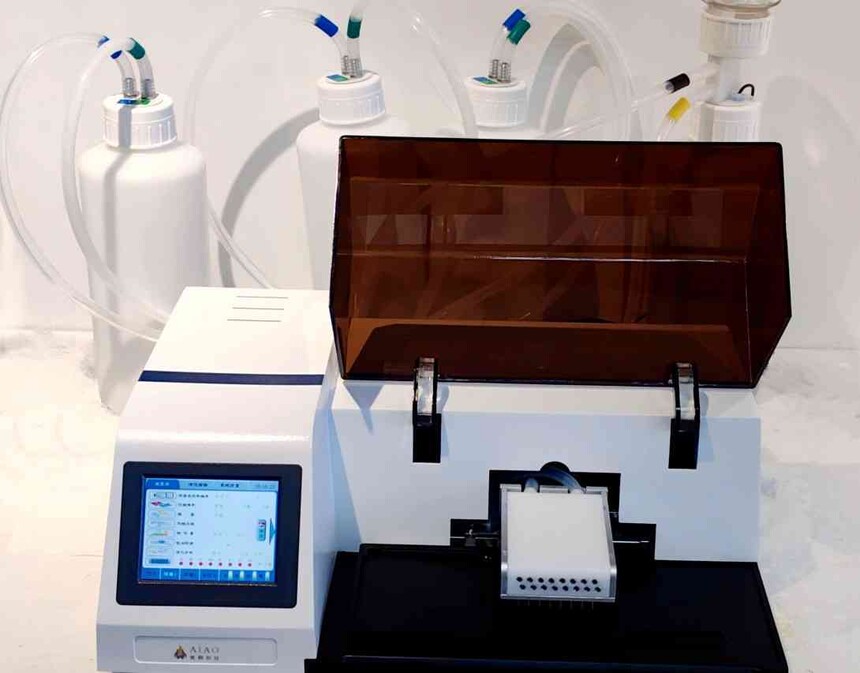

AW 96 high-speed plate washing machine

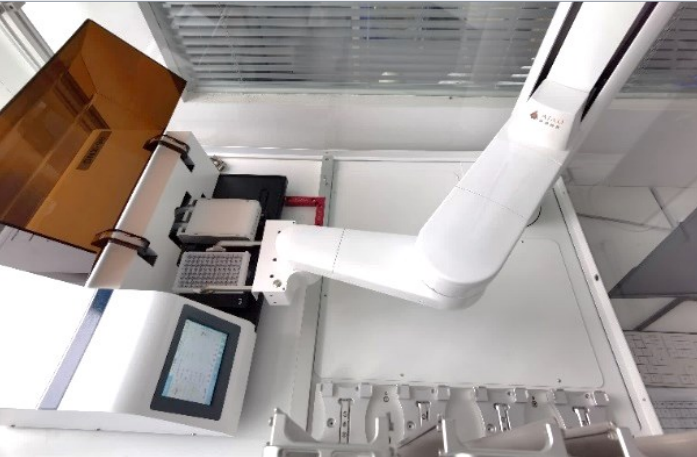

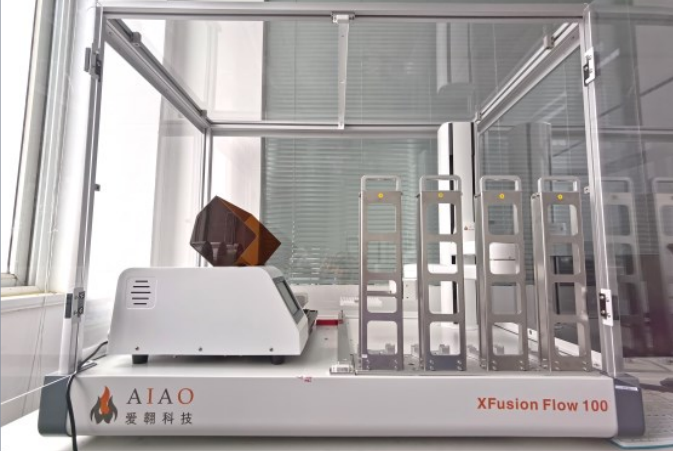

The AW 96 is an advanced device independently developed by I-omics Biotech, designed specifically for the cleaning of microplate readers. This system is primarily designed to clean 12x896-well microplate readers and can easily handle the cleaning of dozens or even hundreds of plates. The AW 96 can be seamlessly integrated into I-omics Biotech's XFusion high-throughput platform, enabling large-scale, unmanned, and automated microplate reader washing operations.

The AW 96 high-speed plate washing machine can edit and store the washing process according to specific needs, making it easy to operate and effectively reducing labor costs. In addition to basic functions such as rinsing, suction, storage, and soaking, it also features adjustable vibration time and intensity, two-point suction, overflow prevention control, and a waste liquid full alarm, ensuring the washing process is both efficient and precise.

performance parameter

1．Multiple washing modes: support single board, double board, multi-board three modes

2．Compatibility: suitable for flat bottom, V-shaped bottom and U-shaped bottom microplate.

3．Accuracy: the average residual amount of washing solution in each hole is less than or equal to 1ul/cell.

4．Liquid absorption function: single liquid absorption function (no liquid), two-point liquid absorption function, the liquid absorption time can be freely adjusted (0-999 seconds).

5．Vibration plate function: can adjust the vibration plate time (0 seconds ~ 86400 seconds) and vibration plate strength (5 levels adjustable)

6．Anti-spill function

7．Bottom washing function

8．Double wash solution channel

9．Supports any setting from row 1 to row 8.

10．Pipeline flushing function.

11．Automatic alarm when the waste liquid collection bottle is full

12．Multiple cycle Settings: The number of cycles can be set from 1 to 1000

13．The soaking time can be adjusted

14．The precise injection amount is adjusted

15．Up to 500 preset plate washing programs can be stored.

16．Shape: 566 x 450 x 237mm (length x width x height), weight: 20Kg

With these features and performance characteristics, AW 96 provides an efficient, accurate and reliable microplate cleaning solution for laboratories, which can be widely used in inspection and quarantine, biotechnology enterprises, pharmaceutical companies, scientific research institutions and colleges.
