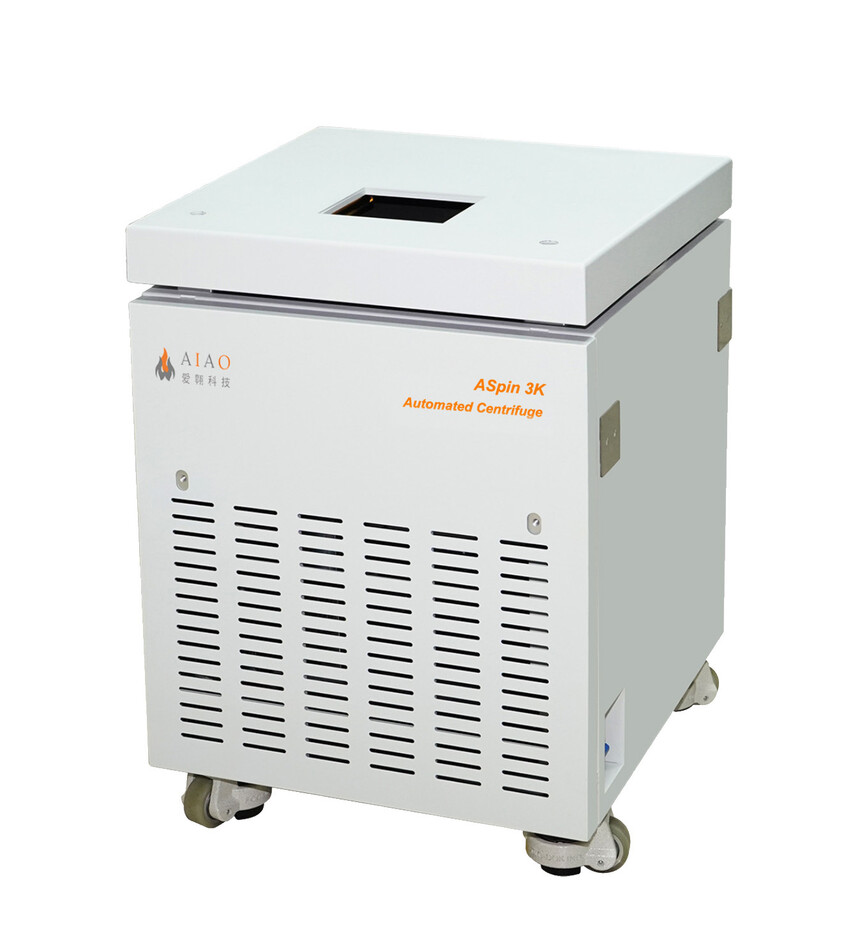

ASpin 3K Automatic Low Temperature Centrifuge

The ASpin 3K fully automated low-temperature centrifuge is an integrated solution for laboratory automation systems. Combining silent operation, stable performance, and low-temperature capabilities, it handles 13mm/16mm test tubes, 5-50ml centrifuge tubes, and various plate formats (requiring specific adapters). This versatile instrument is the ideal choice for automated experimental workflows.

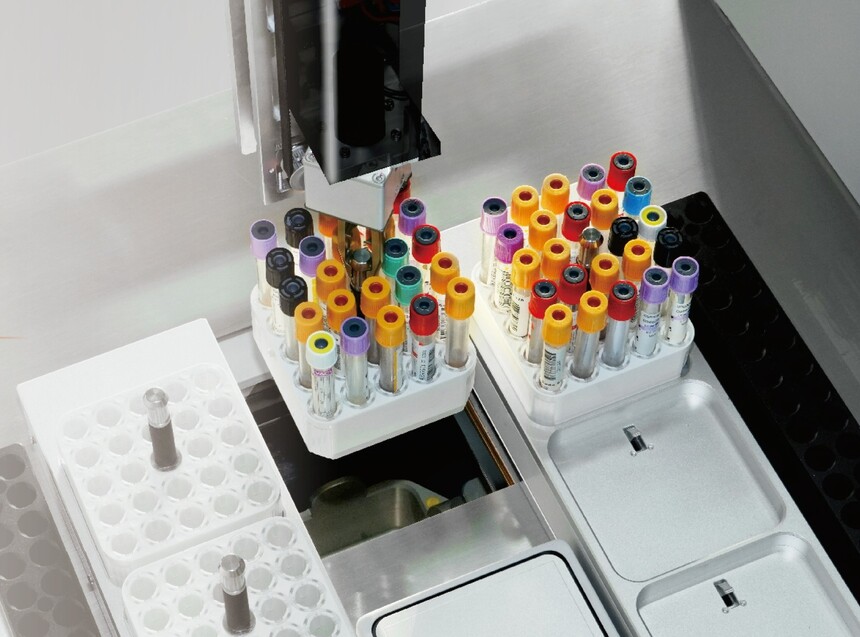

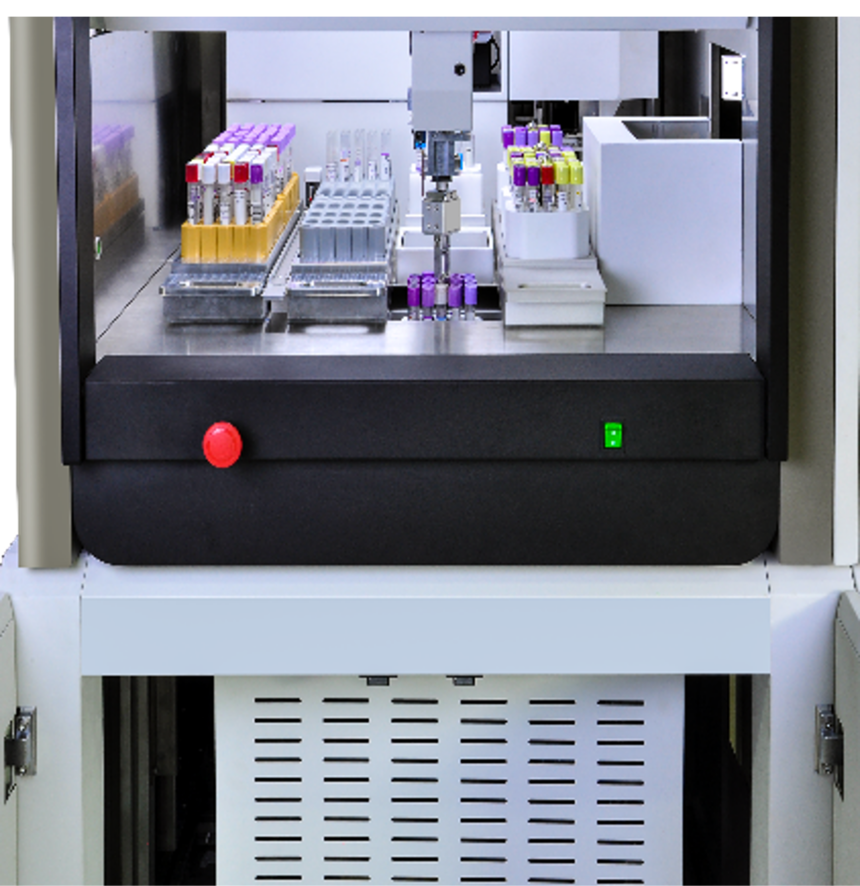

The ASpin 3K centrifuge is designed with a top-opening mechanism, enabling the robotic arm to precisely position the test tube rack into the centrifuge chamber, thus facilitating high-throughput, automated centrifugation.

Furthermore, the ASpin 3K features an anti-unbalance design that automatically detects and halts centrifugation when vibrations occur due to imbalance. With its exceptional acceleration and deceleration performance, it significantly reduces operational cycles. The instrument excels in various experimental procedures, including sample purification, blood separation, nucleic acid and protein purification, degassing, and cell separation and purification.

Apply ：

1. Separation of blood components

2. Cell purification treatment

3. The filtration step of large volume nucleic acid extraction

4. Construction of PCR reaction system

5. Concentration of biological macromolecules

6. Removal of liquid bubbles in orifice plate

7. Synthetic biology process reaction

8. Collection and concentration of bacterial cells

Technical parameter：

1. Temperature：4 ℃-15℃

2. Maximum speed：4200rpm

3. Maximum relative centrifugal force：3000g

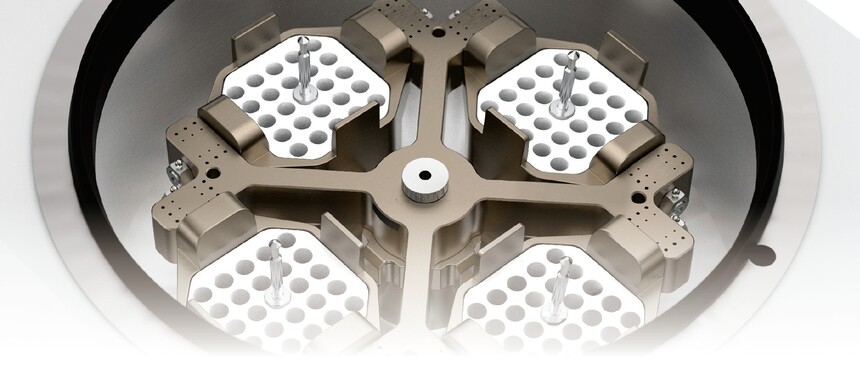

4. Centrifugal method：horizontal rotor centrifuge

5. Fit type：For low-temperature centrifugation, use 13mm and 16mm test tubes, 5-50ml centrifuge tubes, and various types of orifice plates (different adapters required).

6. The number of centrifuge plates that can be used simultaneously：4 block

7. Power：3000W

8. Size：650（L）x570（W）x770mm（H）
