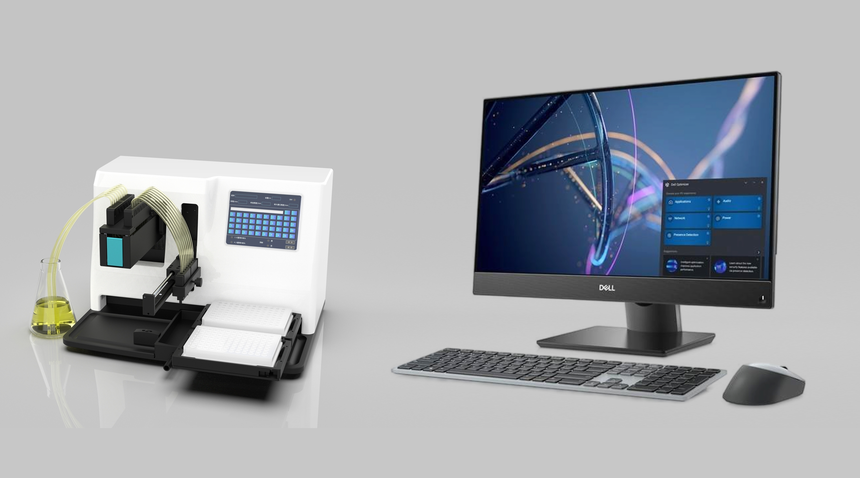

MD 9608D Plus High speed reagent filling system

MD 9608D Plus It can perform high-throughput automated dispensing of various reagents, significantly enhancing work efficiency. The equipment is suitable for the high-precision dispensing of cells, culture media, and various IVD reagents, the preparation of pre-loading plates for nucleic acid extraction reagents, the construction of PCR systems, the dispensing of quality control solutions, the dispensing of glass bottles, the dispensing of storage solutions, and various complex applications such as ELISA experiments.

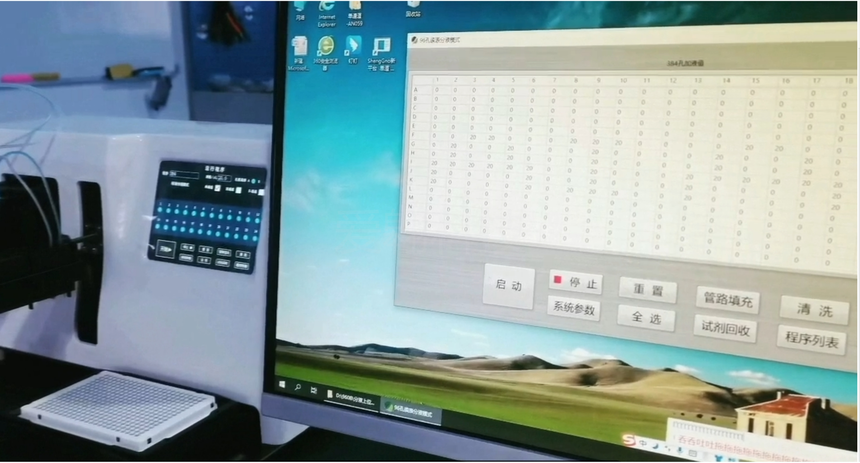

The system, controlled by a computer, can perform complex volume addition patterns. By importing Excel tables, it allows for the addition of different volumes to each well. Additionally, this system can be used for concentration normalization by converting the concentration readings from the microplate reader into different dilution volumes for each well, ensuring that the target concentration in each well is consistent.

Performance features：

ØSpeed<10 s/96-well plate (25 ul); <20 s/384-well plate (20 ul)；

ØType: 6-1536 orifice plate, PCR plate, deep hole plate, 8-connection tube, sampling tube, glass bottle, centrifuge tube, etc；

ØFractional volume range: 1-999uL (small volume tube kit); 5-50000uL (large volume tube kit)；

ØAccuracy of 100uL volume: CV <2%；

ØComplex pore position integral fluid can be imported through Excel table；

ØConcentration homogenization can be completed；

ØThe pipeline usage status can be queried to better monitor the pipeline status；

ØIt can be integrated with film sealing machine, microplate reader, mechanical hand and so on to form a fully automatic all-in-one machine；

ØVolume: 375mm (W) x 383mm (D) x 250mm (H)；
