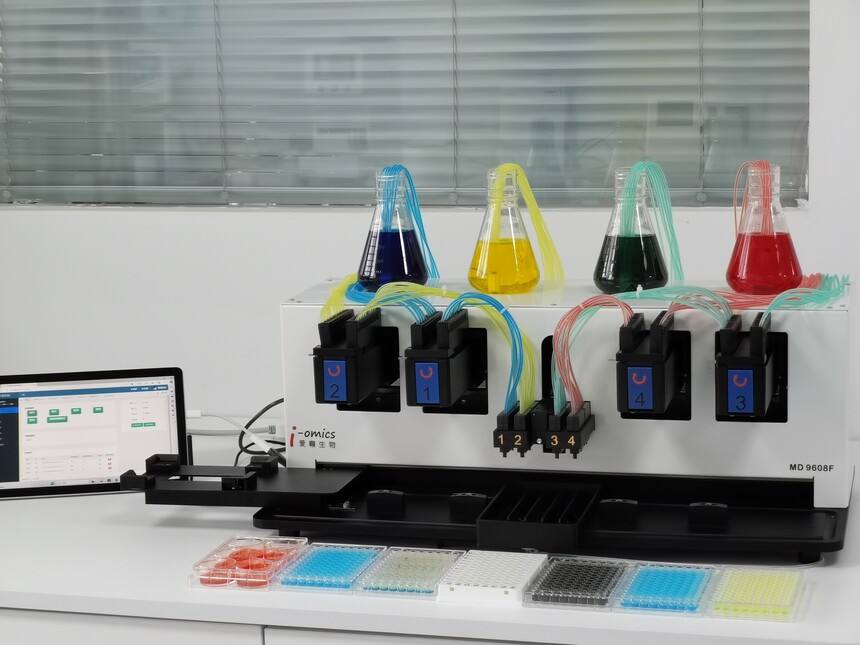

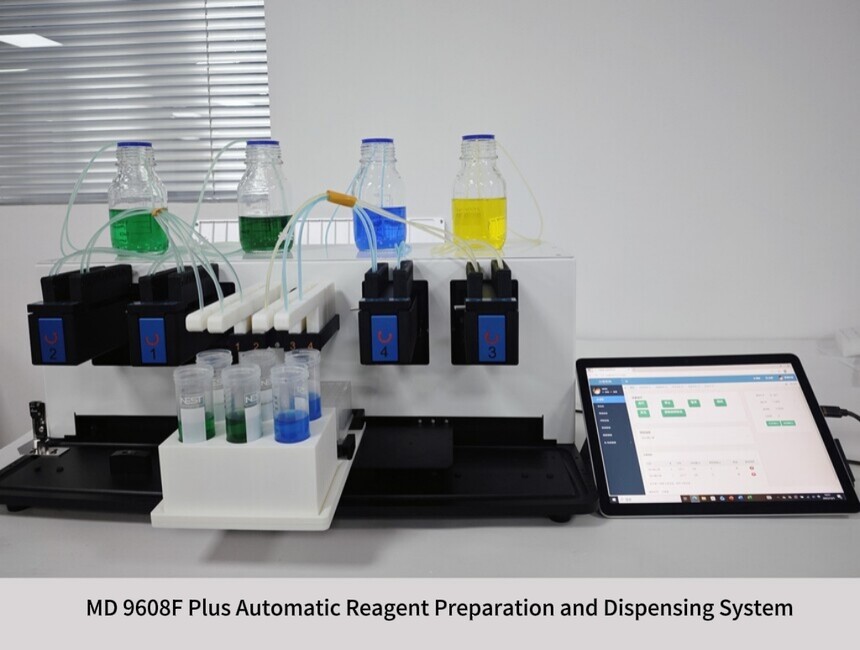

MD 9608F Plus Automatic Reagent Preparation and Dispensing System

The MD 9608F Plus Automated Reagent Preparation and Dispensing System is a next-generation high-throughput automated liquid handling platform introduced by I-omics Biotech, specifically designed for complex multi-component dispensing processes. The system innovatively integrates four independent high-precision micropumps (four 8-channel pumps), enabling simultaneous processing of multiple reagents and achieving full automation from preparation to dispensing. This significantly enhances experimental efficiency and standardizes production processes.

The system integrates a precision liquid handling module with intelligent control software, enabling automated preparation, mixing, dilution, and aliquoting of various reagents. Its core advantage lies in high-precision aliquoting, with a minimum volume of 1μL. The system supports multi-channel parallel processing, significantly reducing batch preparation time, making it particularly suitable for high-throughput applications such as diagnostic reagent production, genomics, drug screening, and clinical diagnostics.

The MD 9608F Plus features an intuitive touch interface and remote program editing capabilities, enabling users to easily configure aliquoting volumes, target well positions, and mixing parameters. The system is compatible with various standard consumables, including 50ml, 15ml, 10ml, 5ml, and 1.5ml centrifuge tubes or reagent cryovials, 6/24/96/384 microplates, cell culture flasks, syringes, and other containers with specific aliquoting requirements.

The system utilizes medical-grade silicone tubing, which can be used once or sterilized for repeated use. With its compact size, the system can be operated in a biosafety cabinet or laminar flow hood, further ensuring reagent purity and operator safety. The MD 9608F Plus, with its stable performance, flexible configuration, and low maintenance requirements, serves as an ideal solution for enhancing laboratory efficiency and reducing human error.

Technical parameter

1. Volume range for aliquoting: 1 μL to 250mL

2. Filling precision: CV <2% (100μL)

3. High-precision liquid separation pump: 4 units

4. Applicable containers: microplates, various test tubes, centrifuge tubes, Cillin bottle, etc.

5. Operating system: Windows, supports protocol import

Widespread applications

The system is applicable to high-precision and high-throughput scenarios such as IVD kit production, preloaded nucleic acid extraction reagent plate preparation, PCR system construction, cell culture medium dispensing, quality control solution allocation, drug screening, and synthetic biology research, having provided stable solutions for dozens of diagnostic enterprises.

The MD 9608F Plus is a game-changing solution that automates labor-intensive tasks while empowering precision research, serving as a key driver for laboratory standardization and intelligent transformation.
