Pre-packaged reagent production system for MD 9608T microfluidic chip

Pre-packaged reagent production system for MD 9608T microfluidic chip

Supports high-throughput production of various microfluidic chips!

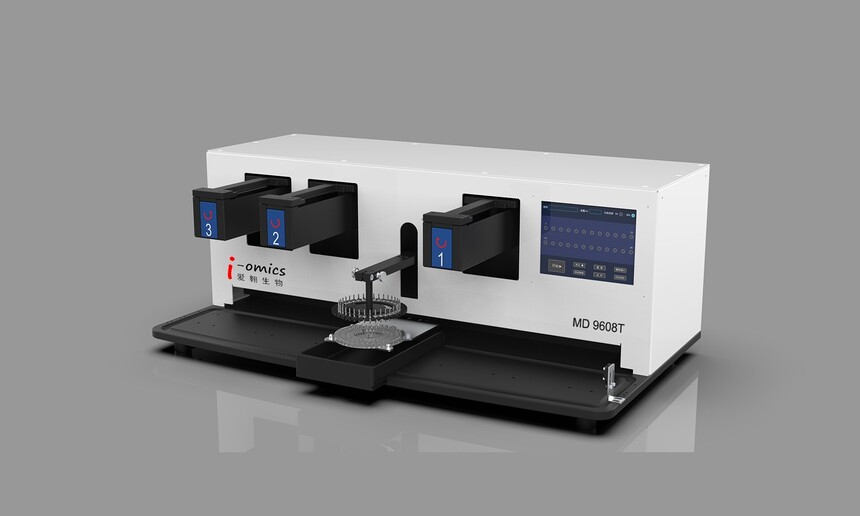

The MD 9608T system is specifically engineered for high-speed, multi-channel microfluidic operations on complex target plates, including microdisk microfluidic chips, lab-on-chip systems, microcard or microstrip cartridges, and dot hybridization membrane chips. Featuring three micropumps, it supports 1-36 channel configurations and enables rapid, precise dispensing of 36 diagnostic reagents into target wells. This capability empowers disease diagnosis technology development teams to advance R&D, pilot production, or large-scale manufacturing. Customization is also available for additional channels or specialized nozzle types.

Performance characteristics：

Ø1-36 high precision liquid flow channels； (Customize more channels)

Ø Velocity ：<5 seconds per sample (10 μl)

Ø Type：Microdisk Microfluidic Chip、lab on chip、dot blot membrane chip

Ø liquid volume range：

1-999μL（Small volume tube kit）

5-50000μL（Large-volume tube kit）

Ø  precision in liquid volume of 100μL：CV<2%

Ø2 control modes：Tap the touchscreen to operate or Automatic induction operation

Ø It can be integrated with third-party manipulators for collaborative operations

ØYou can upgrade to more channels

ØCustomizable multi-channel combination spray nozzle

ØSize：620mm(L)*230mm(H)*381mm（D）

Corollary equipment

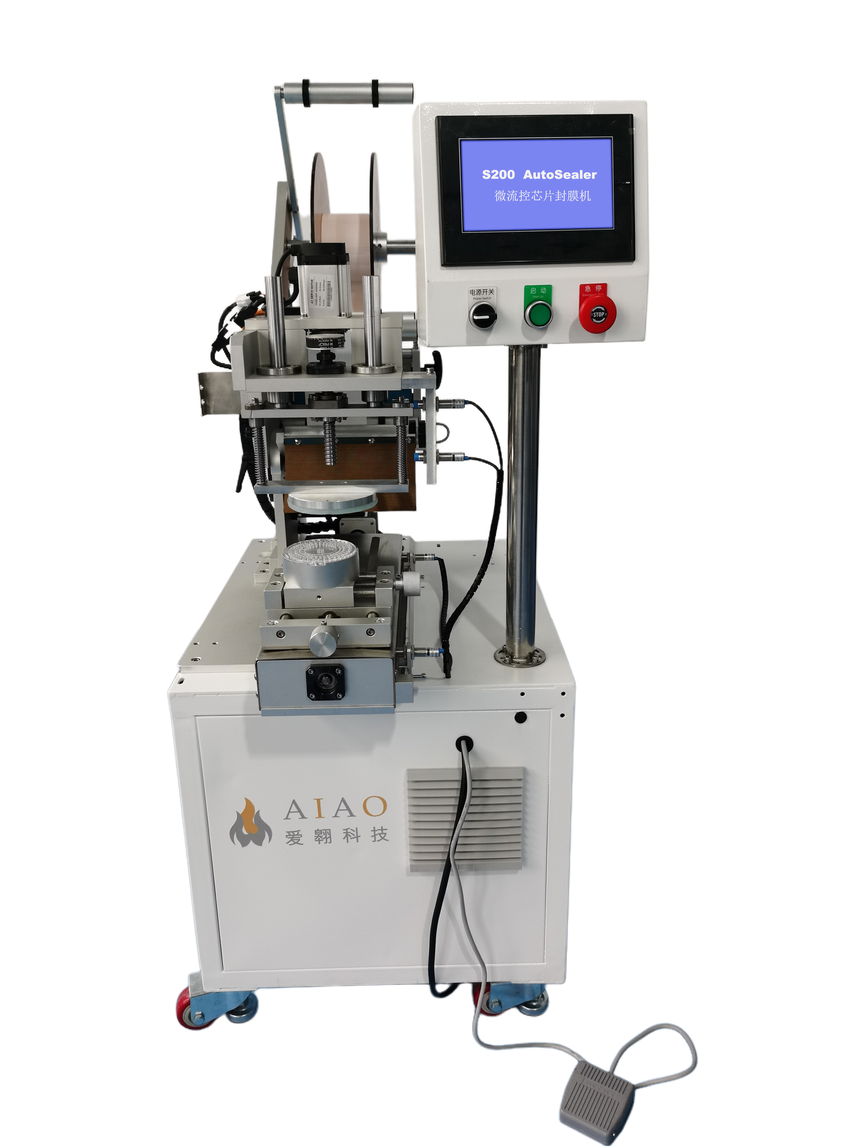

S200 Microfluidic Chip Film Coating Machine
